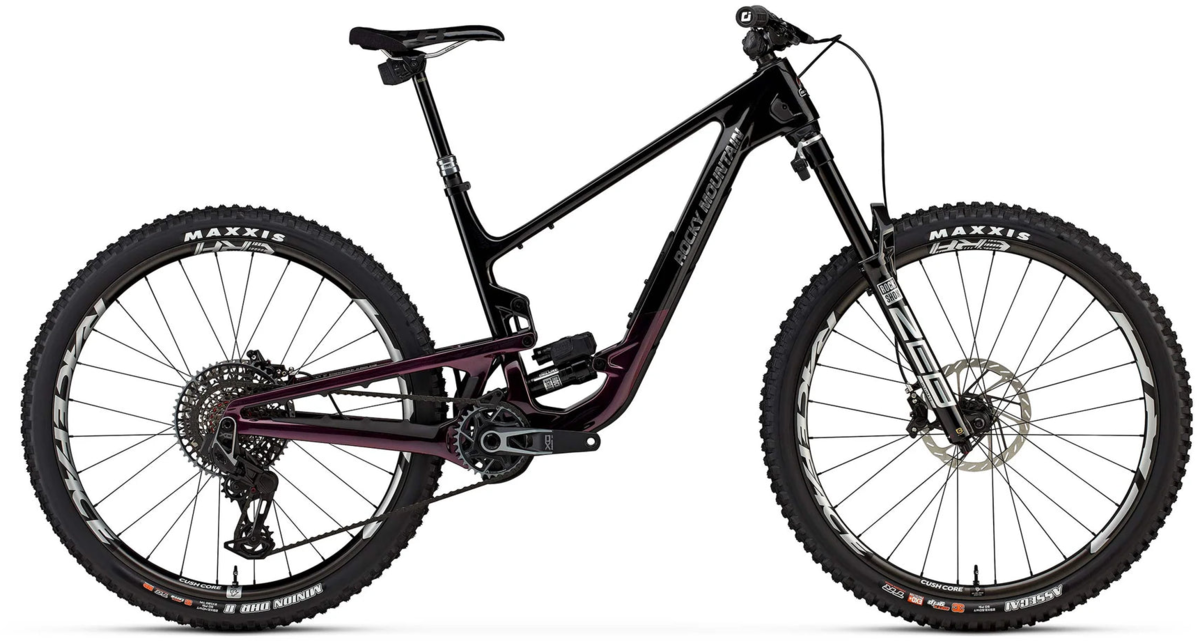

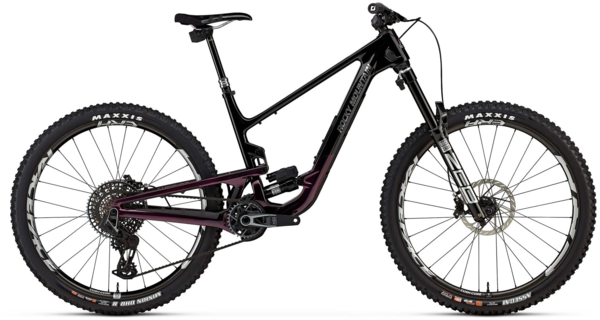

Rocky Mountain Altitude C99 Sram
$10,999.00
Details
The Altitude Carbon is purpose-built to go fast and demolish steep trails. Fine tune your ride by opting for full 29'' or MX, using the built-in flip chip (sizes MD-XL) or adjust the RIDE-4™ with a single Allen key. Its total enduro capabilities can help you secure that “top step” and own those demanding group rides with confidence. The redesigned Altitude Carbon also features internal routing and the new PenaltyBox™ 2.0 downtube storage. With so much capability in your corner, it’s time to push limits, climb faster, and charge. Enduro lives at Altitude.
| MD | LG | XL | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 584 | 610 | 642 |
| Head Tube Angle (deg) | 62.9 | 62.9 | 62.9 |
| Head Tube Length (mm) | 105 | 115 | 130 |
| Seat Tube Angle (deg) | 77 | 77 | 77 |
| Seat Tube Length (mm) | 410 | 440 | 470 |
| Rear Centre (mm) | 440 | 450 | 450 |
| Bottom Bracket Drop (mm) | 29 | 29 | 29 |
| Reach (mm) | 450 | 475 | 505 |
| Stack (mm) | 630 | 639 | 653 |
| Standover Height (mm) | 791 | 797 | 808 |
| Wheelbase (mm) | 1243 | 1282 | 1319 |
| Frame Size | Measurements |
|---|---|
| Small | 152.5 - 167 cm / 5’0” - 5’6” |
| Medium | 162.5 - 177.5 cm / 5’4” - 5’10” |
| Large | 172.5 - 188 cm / 5’8” - 6’2” |
| X-Large | 183 - 198 cm / 6’0” - 6’6” |
Specs
| Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | BSA Bottom Bracket | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry |160mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Fork | RockShox Zeb Ultimate Flight Attendant 170mm | 27.5 = 38mm Offset | 29 = 44mm Offset |
| Rear Shock | RockShox Super Deluxe Ultimate Flight Attendant HBO | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ |
| Rims | Race Face Era Carbon |
| Hubs | Race Face Vault |
| Spokes | Race Face Straight Pull | Butted 2.0-1.65 | Alloy Nipples |
| Tires | F: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready // Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection |
| Bottom Bracket | Sram DUB BSA 73 Wide |
| Crankset | Sram X0 Transmission Alloy | 32T | DUB Spindle | Power Meter Sensor | Crankarm Length: XS -SM = 165mm | MD - XL = 170mm |
| Shifters | Sram AXS Wireless Pod Controller |
| Rear Derailleur | Sram X0 Transmission Wireless |
| Cassette/Freewheel | Sram X0 Transmission 10-52T |
| Chain | Sram XO Flattop T-Type |
| Brakes | Sram Code RSC 4 Piston | Metal Pads |
| Handlebars | Race Face Next R | 780mm Width | 35mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp |
| Tape/Grips | ODI Elite Pro Lock On |
| Stem | Race Face Turbine R | 0° Rise | All Sizes = 40mm |
| Headset | FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Seatpost | Rock Shox Reverb AXS Wireless Post | SM = 150mm | MD - XL = 170mm |
| Saddle | WTB Volt Race 142 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black/Purple/Silver / Small / 27.5-inch | 770416526363 | B0393SM1 | |
| Black/Purple/Silver / Medium / 29-inch | 770416526325 | B0393MD1 | |
| Black/Purple/Silver / Large / 29-inch | 770416526288 | B0393LG1 | 210000005777 |
| Black/Purple/Silver / X-Large / 29-inch | 770416526400 | B0393XL1 |
